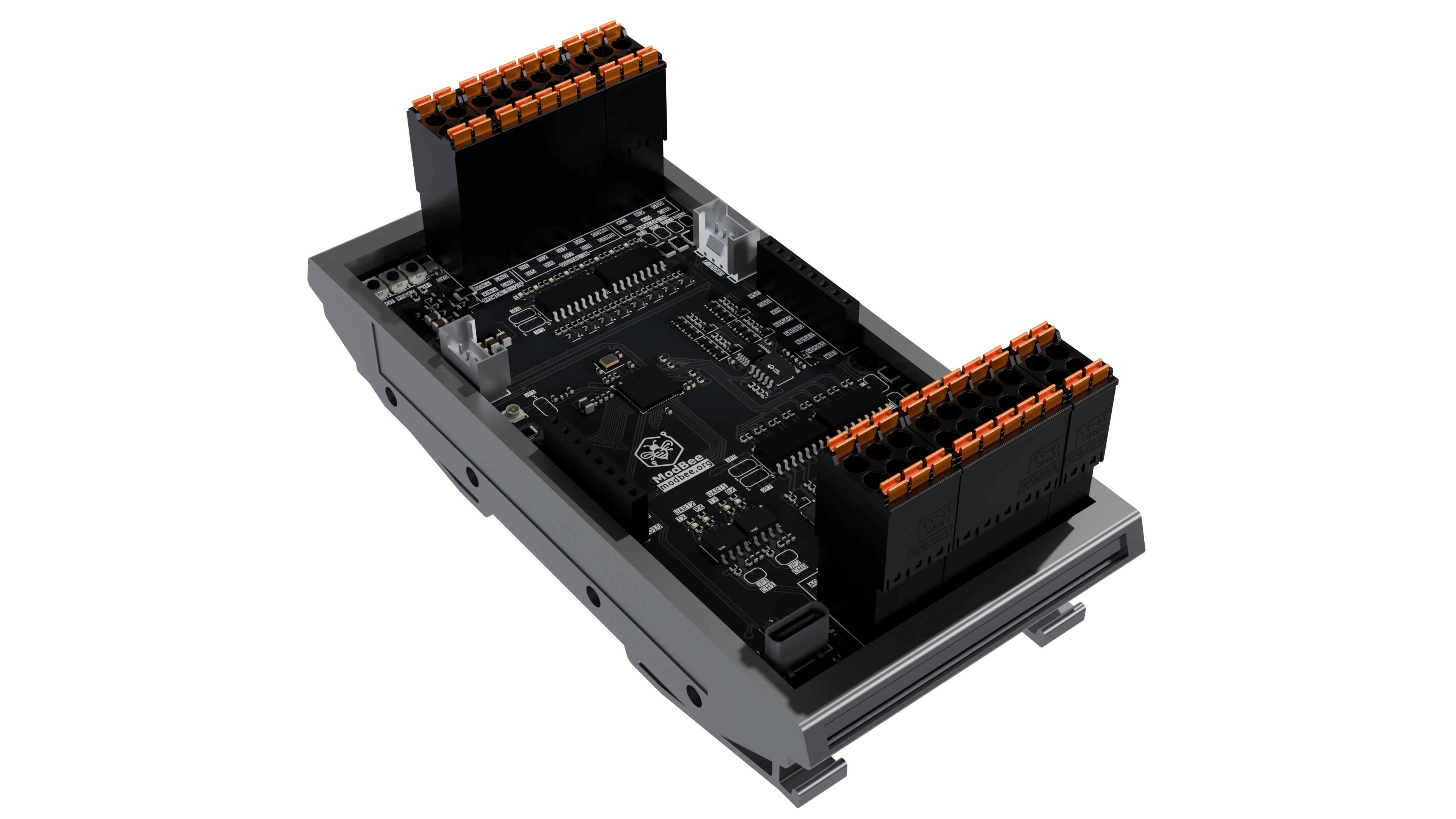

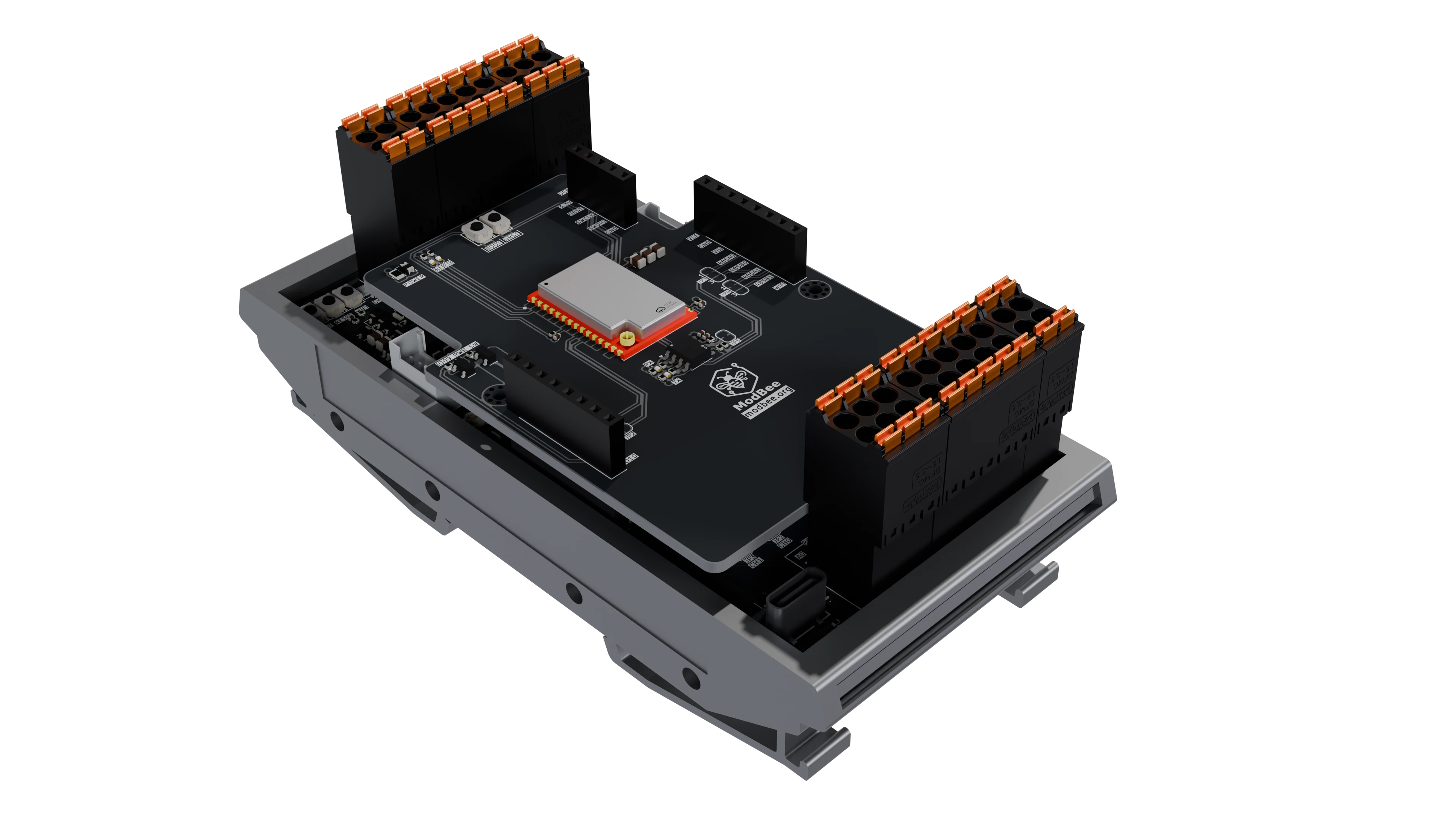

ModBee Node UIO

Firmware libraries and hardware documentation for the ModBee Node UIO, an
ESP32-S3 industrial I/O module for 35 mm DIN rail: 8 digital inputs, 8 digital
outputs, 4 analog inputs, 2 analog outputs, 2 RS485 ports, Wi-Fi, Grove I2C
and stackable HAT headers.

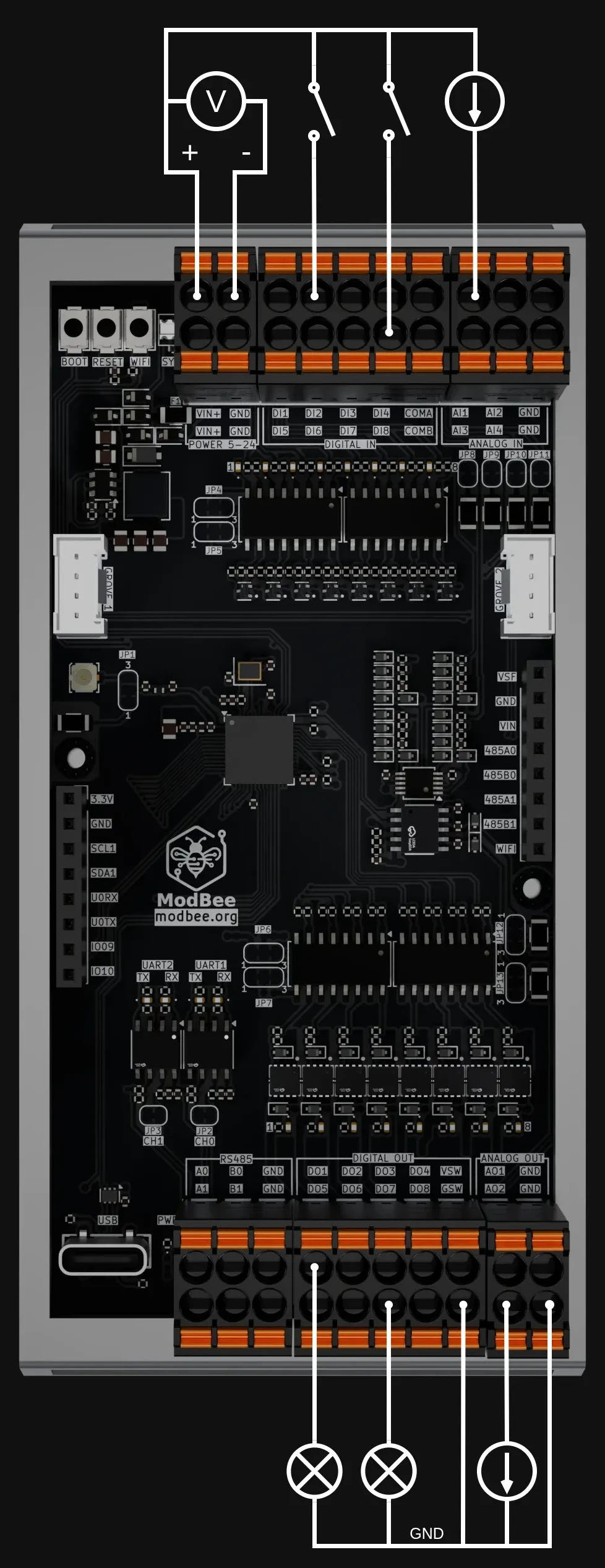

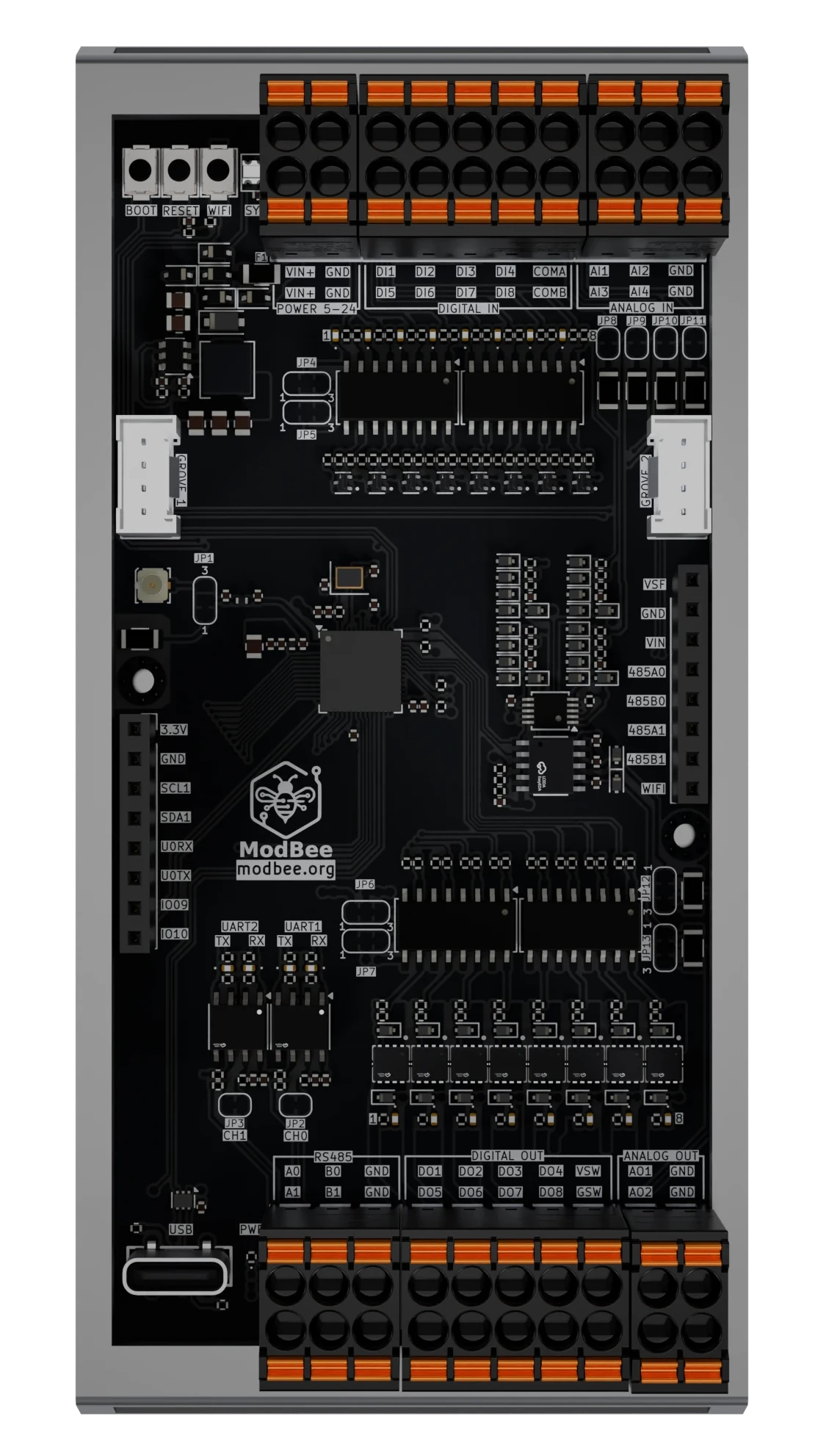

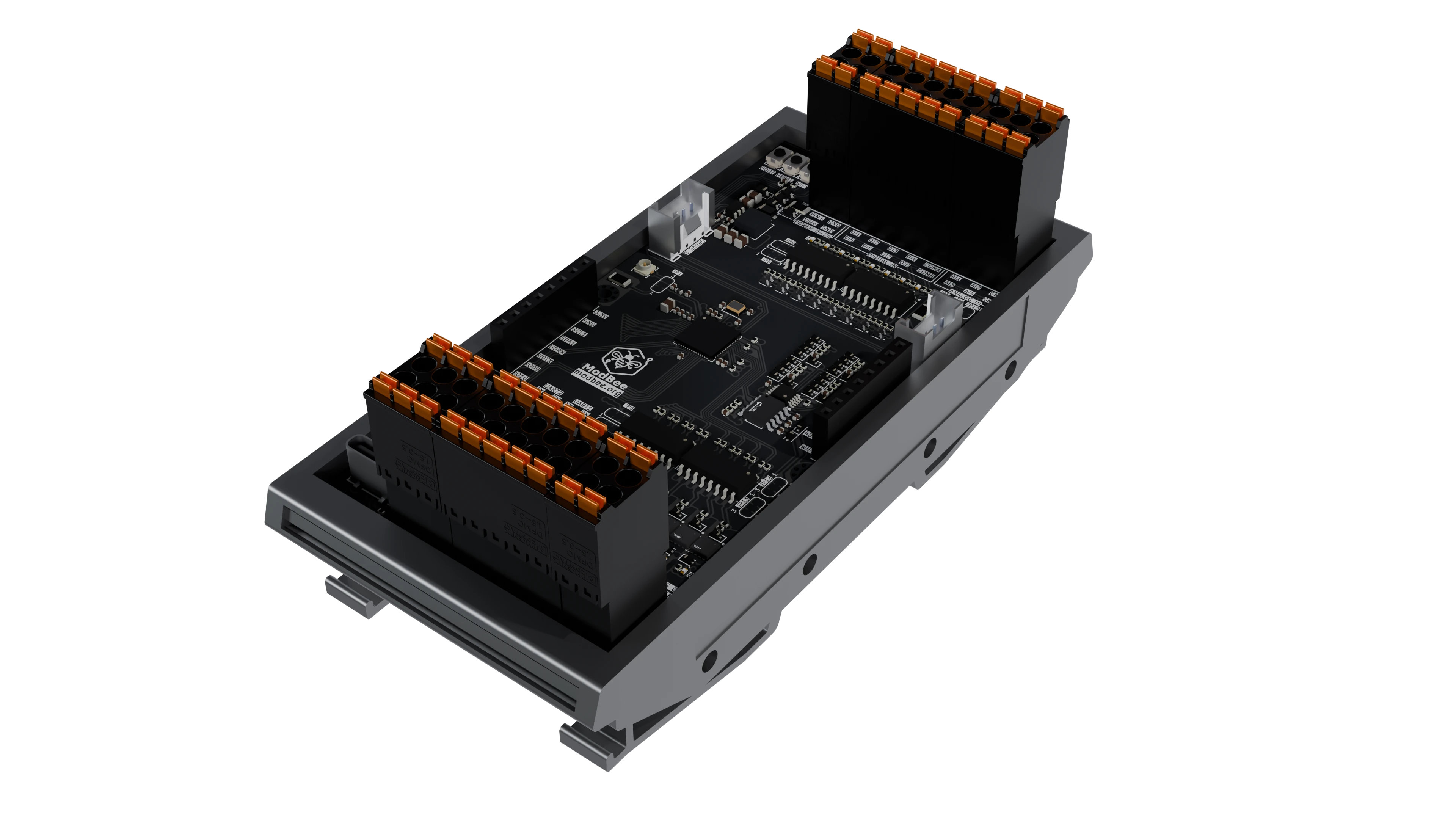

ModBee Node UIO

What is here

Folder	What it is
node-uio	`ModBeeNodeUIO`, the board library: I/O, pulse counting, HAT power, Wi-Fi bring-up, sleep and wake, the I2C expansion bus. Also the hardware documentation, schematic and photos.
node-webUI	`NodeWebUI`, an optional web page showing the board's live I/O, with an analog calibration editor. Depends on `ModBeeNodeUIO`.

Start with node-uio/README.md. The reference documents are:

Hardware: pinouts, GPIO map, power, solder bridges
API: the NodeUioAPI reference
Schematic

Quick start

#include <NodeUioAPI.h>

void setup() {
  uio().begin();
}

void loop() {
  uio().update();

  bool on = false;
  uio().digitalIn(0, on);       // DI01
  uio().setDigitalOut(0, on);   // DO01
}

Installing

Both libraries live in subfolders of this repository, so neither the Arduino
Library Manager nor a plain PlatformIO git URL can install them directly.

Arduino IDE

Install the ESP32 core: Boards Manager, esp32 by Espressif Systems.
Copy node-uio (and node-webUI if you want the web page) into your
Arduino libraries folder.
For node-webUI, install ArduinoJson, Async TCP and
ESP Async WebServer (the ESP32Async versions) from the Library Manager.
Select the LOLIN S3 Mini board, which uses the same ESP32-S3FH4R2, and
set USB CDC On Boot to Enabled so that Serial is the USB port.

The ESP32 core already provides Wire, Preferences and WiFi. Do not
install libraries of those names from the Library Manager.

PlatformIO

Clone this repository and point lib_deps at the folders:

[env:node_uio]
platform = espressif32
board = lolin_s3_mini
framework = arduino
build_flags =
  -D ARDUINO_USB_MODE=1
  -D ARDUINO_USB_CDC_ON_BOOT=1
lib_deps =
  symlink:///path/to/modbee-node-uio/node-uio
  symlink:///path/to/modbee-node-uio/node-webUI   ; optional

node-webUI pulls in its own dependencies from the PlatformIO registry. Each
folder also has a platformio.ini that builds its example.
